PCBA stands for Printed Circuit Board Assembly. It is the process of mounting and soldering electronic components onto a printed circuit board (PCB). The PCB is the foundation of any electronic device, and the PCBA process is a crucial step in the manufacturing of electronic products. The PCBA process involves assembling and soldering electronic components, such as resistors, capacitors, integrated circuits, and other electronic components, onto a PCB. The components are placed on the PCB using automated pick-and-place machines, and then the components are soldered onto the board using a reflow soldering process or a wave soldering process. The PCBA process ensures that the electronic components are correctly mounted onto the PCB, and that the electrical connections between the components and the PCB are solid and reliable. The PCBA process is critical to the quality and reliability of electronic products, and it requires specialized equipment and expertise to perform effectively.

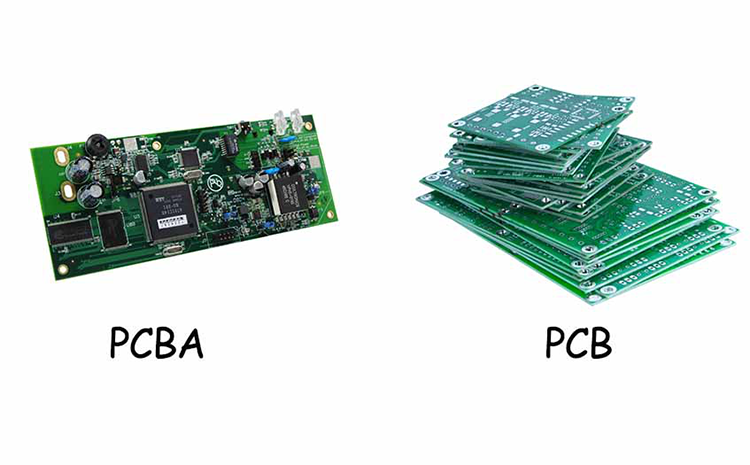

PCB and PCBA

PCB and PCBA

A PCB is a thin board made of non-conductive material, usually fiberglass or plastic, with conductive pathways etched onto its surface. These pathways, also known as traces, are used to connect electronic components that are mounted on the board. The PCB provides a stable platform for the electronic components and acts as a medium for transmitting electrical signals between the components.

PCBA is the process of mounting and soldering electronic components onto a PCB. During the PCBA process, electronic components are placed on the PCB using automated pick-and-place machines, and then the components are soldered onto the board using a reflow soldering process or a wave soldering process. The PCBA process turns the bare PCB into a complete and functional electronic product.

In summary, a PCB is a board with conductive pathways, while PCBA is the process of assembling electronic components onto a PCB to create a functional electronic product.

Process of PCBA

The process of PCBA (Printed Circuit Board Assembly) involves several steps:

  1. PCB fabrication: The first step is to manufacture the bare PCB. This involves designing the PCB layout, creating the printed circuit board, and drilling holes for the components.
  2. Solder paste application: Solder paste is applied to the PCB using a stencil, which is aligned with the PCB using a fixture. The solder paste is a mixture of small balls of solder and flux.
  3. Component placement: Electronic components are placed onto the PCB using a pick-and-place machine. The machine picks up each component from a feeder and places it onto the PCB in the correct position.
  4. Reflow soldering: The PCB is passed through a reflow oven, where it is heated to a specific temperature to melt the solder paste and form a strong bond between the components and the PCB.
  5. Inspection: After the PCBA process is complete, the PCB is inspected to ensure that all components are correctly placed and that the solder joints are strong and free from defects.
  6. Testing: The final step is to test the completed PCB to ensure that it functions correctly. This involves using various testing methods, such as functional testing, in-circuit testing, and boundary scan testing, to verify that the PCB meets the required specifications.

The PCBA process requires specialized equipment and expertise to perform effectively. It is a critical step in the manufacturing of electronic products, as it ensures that the electronic components are correctly mounted onto the PCB, and that the electrical connections between the components and the PCB are solid and reliable.
